A. Film / Enteric Coating:
The solution is pumped into a spray gun, which atomizes the liquid into fine droplets. The droplets are sprayed onto the tablets and placed in a tumbling pan, allowing for even coverage. Heated air is continuously blown into the pan, forming a uniform and thin film on the tablet's surface.
B. Sugar Coating:
The syrup is sprayed onto the tablets by a metering pump, then through the repeated process of tumbling, cooling, and drying to form a thick sugar layer to protect the tablet.
Applications :
Pharmaceuticals: protecting sensitive drugs from gastric acid.
Food: Chocolate, gum, healthy food coating and sugar coating
A. Sugar coating: applied to tablets to mask unpleasant tastes and enhance aesthetic appeal.
B. Film coating: Used for tablets and capsules to provide a protective layer.
Features :
- Film coating and sugar coating can be applied on the same machine
- automatically operated

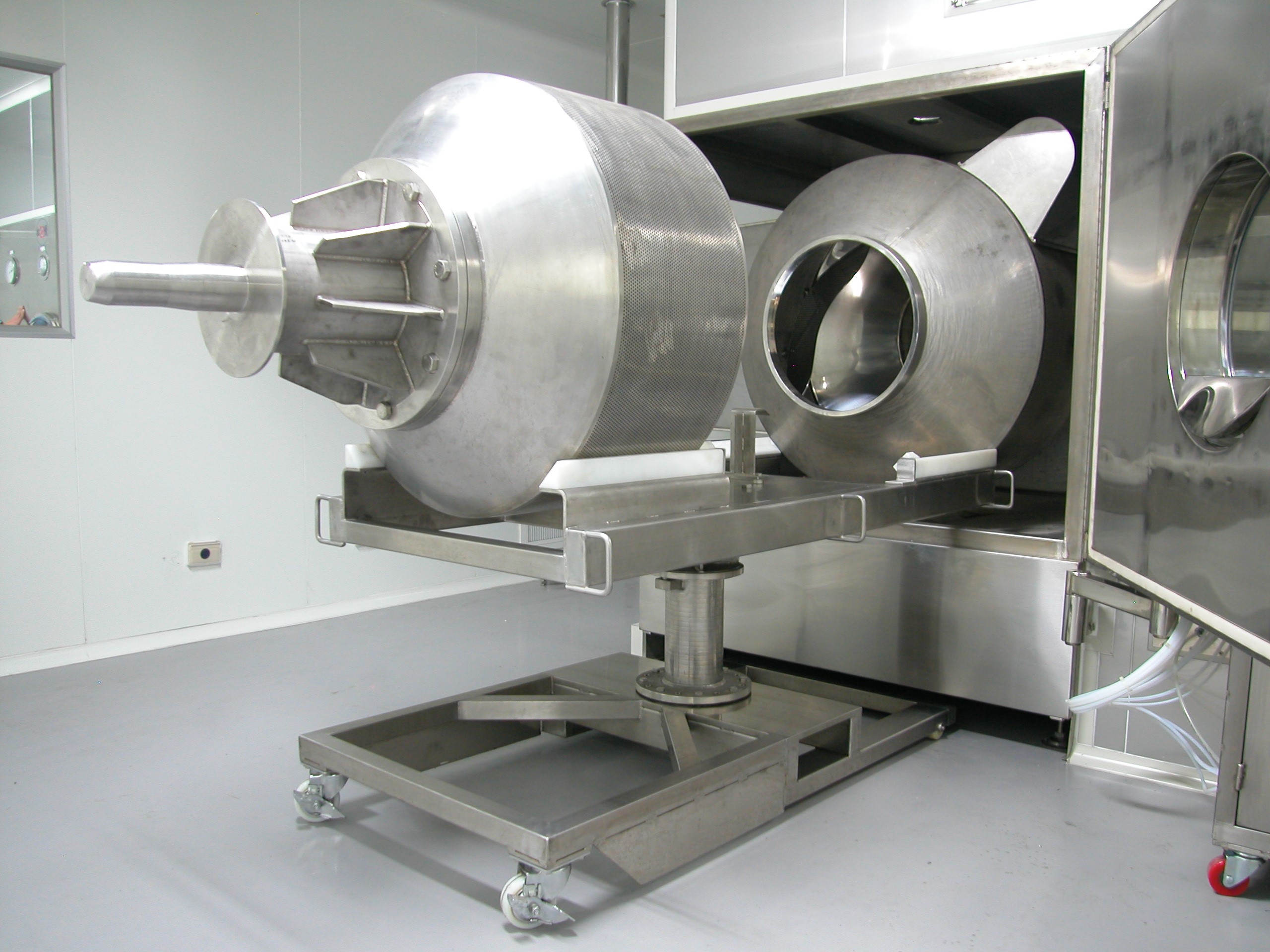

- The design of the tumbling pan features an elliptical hollow structure, which significantly enhances ventilation and drying efficiency
- The unique internal baffle design ensures that tablets are evenly mixed during the coating process
- Equipped with a Japanese-made T-AGB spray gun, which atomizes the coating solution uniformly without causing bead formation.
- A wet dust collection system complies with environmental regulations and prevents air pollution.
- CIP Automatic Cleaning System (Optional)
- HMI Control (Optional)
|
Tank
|
Mesh
|

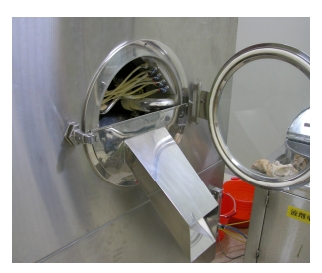

Automatic Discharge Device: Saves labor and discharge time.
|
|
|
Dimensioning
Model Specifications - Operating Capacity: 10~450 kg per batch
|
型号 (SH-) |
SC-15 |
SC-30 |
SC-60 |
SC-120 |
SC-200 |
SC-300 |
|
操作容积 (kg) |
10~15 |
25~40 |
50~70 |
120~160 |
180~260 |
320~450 |
|
传动马力(HP) |
1 |
2 |
3 |
5 |
7.5 |
10 |
|
迴转数(rpm) |
3~20 |
3~18 |
2~15 |
2~12 |
1~10 |
1~8 |
|
外观尺寸(mm) (LxWxH) |
1100x 1000x 1600 |
1200x 1100x 1700 |
1400x 1300x 1800 |
1700x 1700x 1900 |
2000x 1900x 2100 |
2200x 2150x 2300 |
