Principle

The low-temperature vacuum concentrator works by reducing atmospheric pressure, which lowers the boiling point of solvents. For example, at 1 atm (25°C), water boils at 100°C. Under reduced pressure, water and other solvents evaporate at much lower temperatures. This enables solvent removal while preserving the solute, which remains due to its higher boiling point. The process is similar to vacuum distillation and is ideal for concentrating solutions without exposing heat-sensitive materials to high temperatures, preventing thermal decomposition.

Applications

• Natural Materials Processing: Used to extract and concentrate active ingredients from natural materials by evaporating water and alcohol using steam heat, ensuring continuous low-temperature concentration.
• Pharmaceuticals and Food: Suitable for concentrating extracts in pharmaceutical, food, and biotechnology industries, where maintaining product integrity is crucial.

Features

1. Automated Operation: Equipped with a human-machine interface for automated control.
2. Adjustable Concentration Temperature: Can be set between 40°C to 65°C for optimal concentration.
3. Monitoring Devices: Includes temperature sensors, vacuum gauges, and water level detectors to ensure stable operation.
4. Heat Exchanger: Prevents scorching by efficiently exchanging energy during concentration.
5. Anti-Backflow Design: Prevents backflow in the evaporation chamber and includes an automatic foam elimination function.
6. Condensate Recovery: Automatically recycles or disposes of distilled water.
7. High-Quality Components: Uses imported steam control accessories from renowned manufacturers to enhance part lifespan and thermal efficiency.
8. Material Compliance: Constructed from high-grade stainless steel, meeting GMP and PIC/S standards for pharmaceutical, food, and biotechnology applications.

Human-machine Interface

Concentrator Flow Diagram

Low-Temperature Vacuum Concentrator

1. Ideal for factories with high production capacities, ensuring efficient and continuous operation.
2. All heaters are made from seamless Japanese stainless steel pipes, ensuring durability and hygiene.
3. Offers high condensation efficiency, allowing the use of circulating cooling water without the need for an ice water machine. Efficiency is further enhanced when used.
4. Requires less horsepower to achieve high vacuum levels, resulting in significant energy savings.
5. Equipped with a CIP (Clean-in-Place) system for automatic cleaning, ensuring easy maintenance and hygiene.
6. Operates at low temperatures between 40°C to 65°C, suitable for heat-sensitive materials.
7. Achieves high vacuum levels of -600 to -700 mmHg, enhancing the efficiency of the evaporation process.

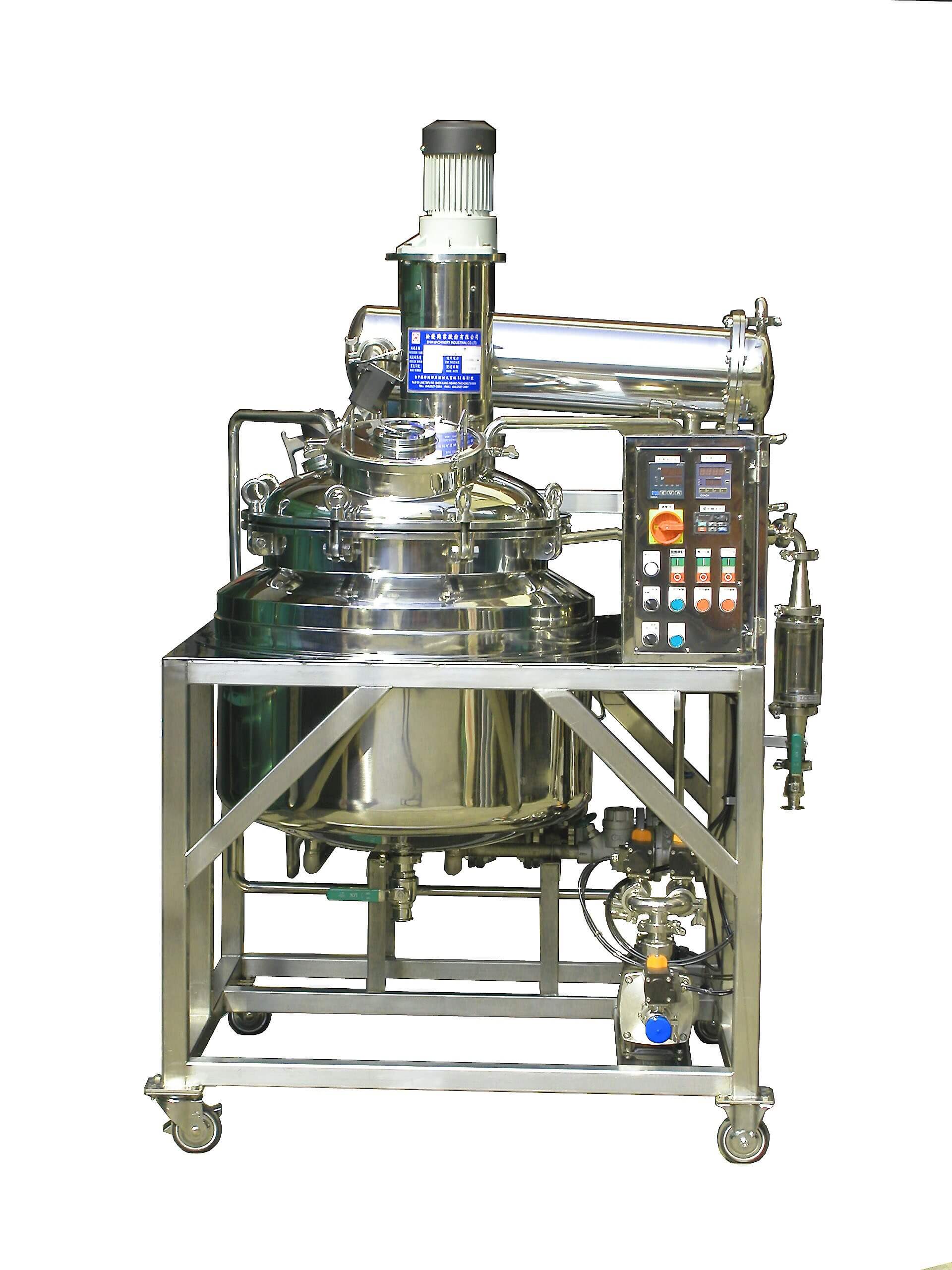

Stirred concentrator

Ideal for small batch production, allowing for quick changes between different product types.

※Concentration Capacity":  30 to 2000 liters per hour (L/Hr) for a single machine using pure water.

Diagram of Concentrator

Basket-Type Extraction Concentrator

Features :

1. Ideal for scenarios where production quantities are small and product varieties are diverse. Medicinal materials are placed in a basket made of perforated mesh, which is lifted and lowered using a hoist. The structure is simple, requiring less space for operation.
2. Extraction temperature is automatically controlled to ensure optimal conditions.
3. Equipped with a condenser, allowing operation in a fully enclosed environment. Includes a filter to reduce residue from medicinal dregs during concentration, enhancing product purity.

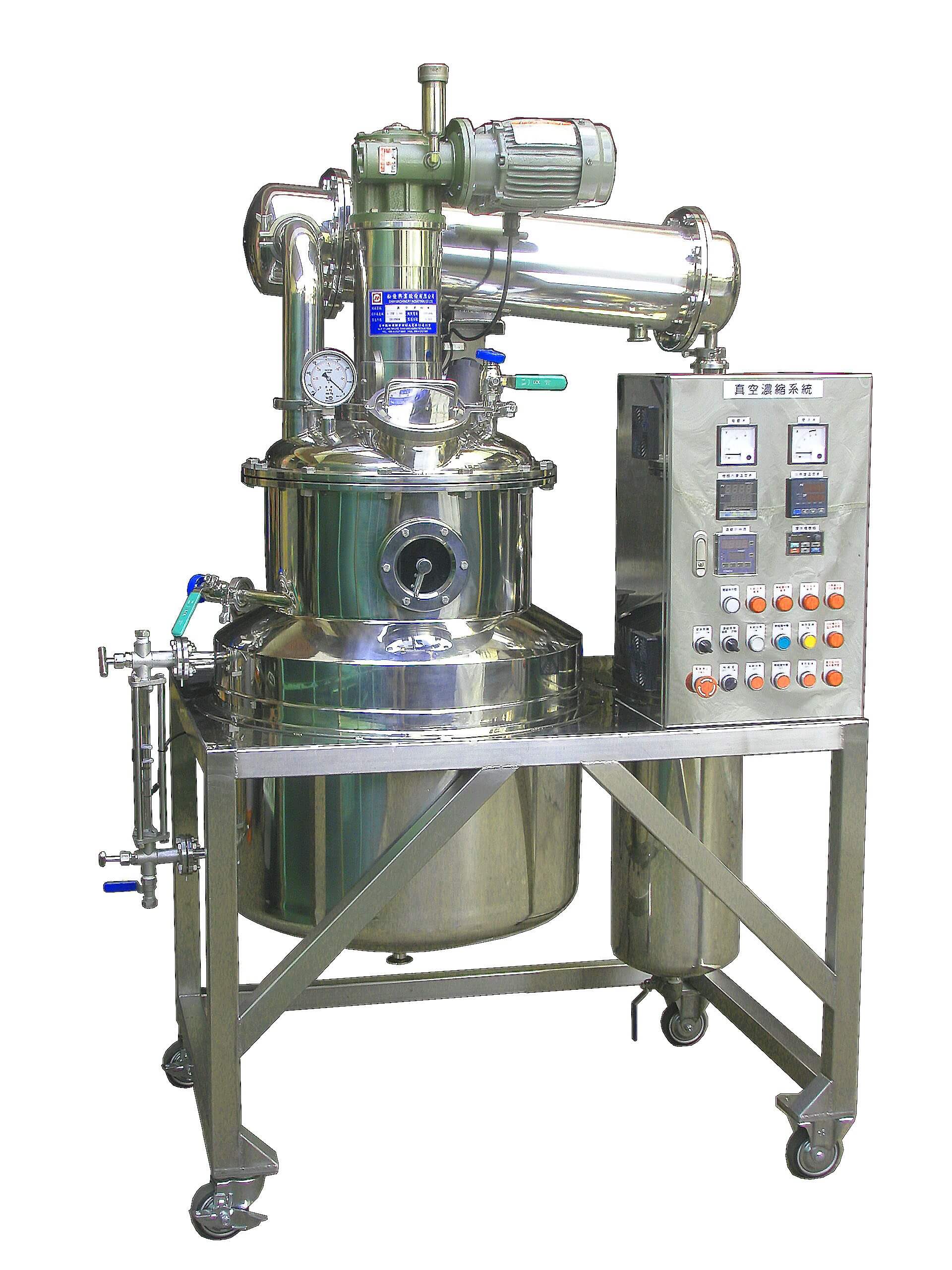

Small Scale Vacuum Concentrator

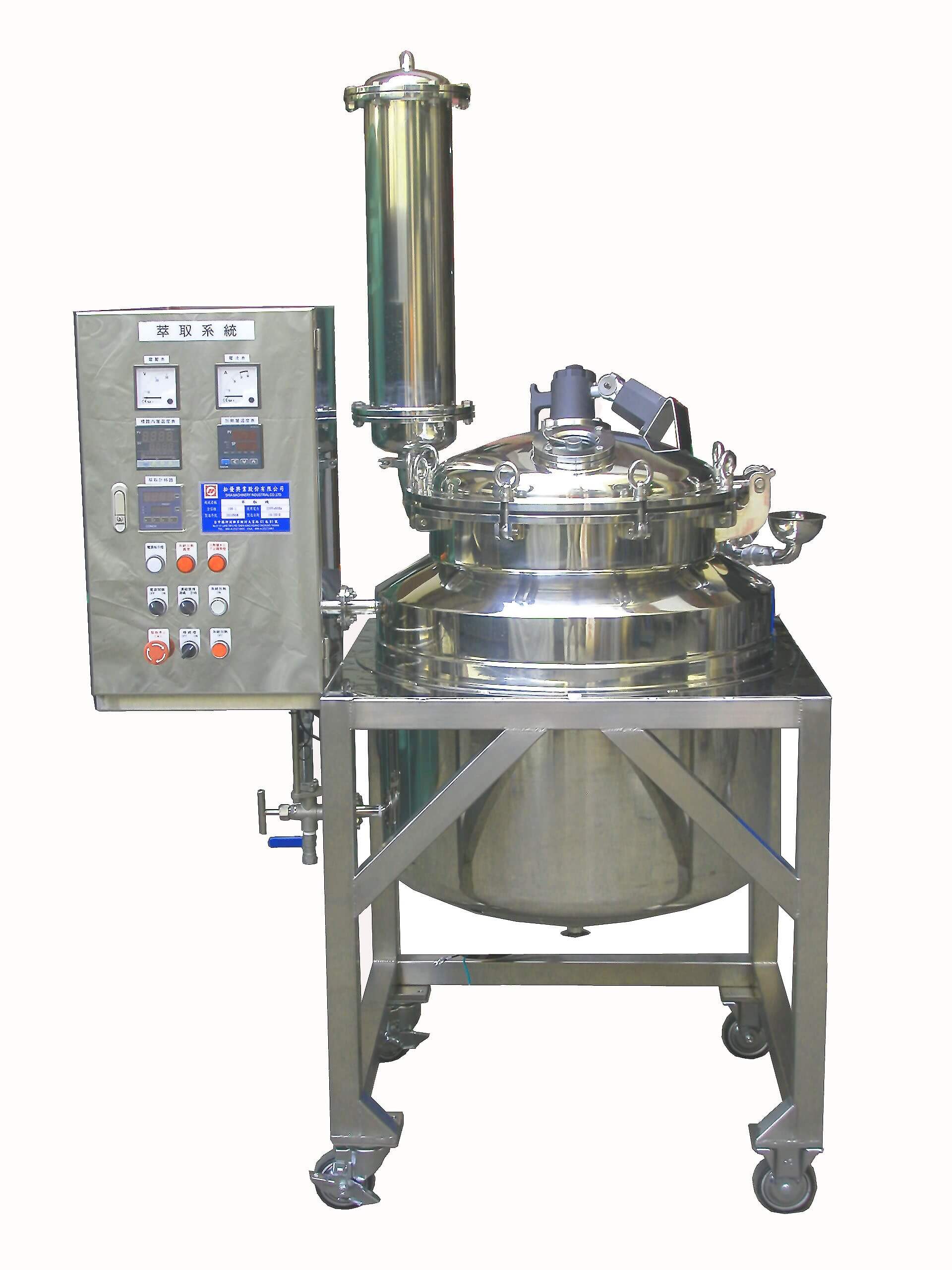

Small Scale Extractor

Mass Production Extraction System
