Mechanical Principle

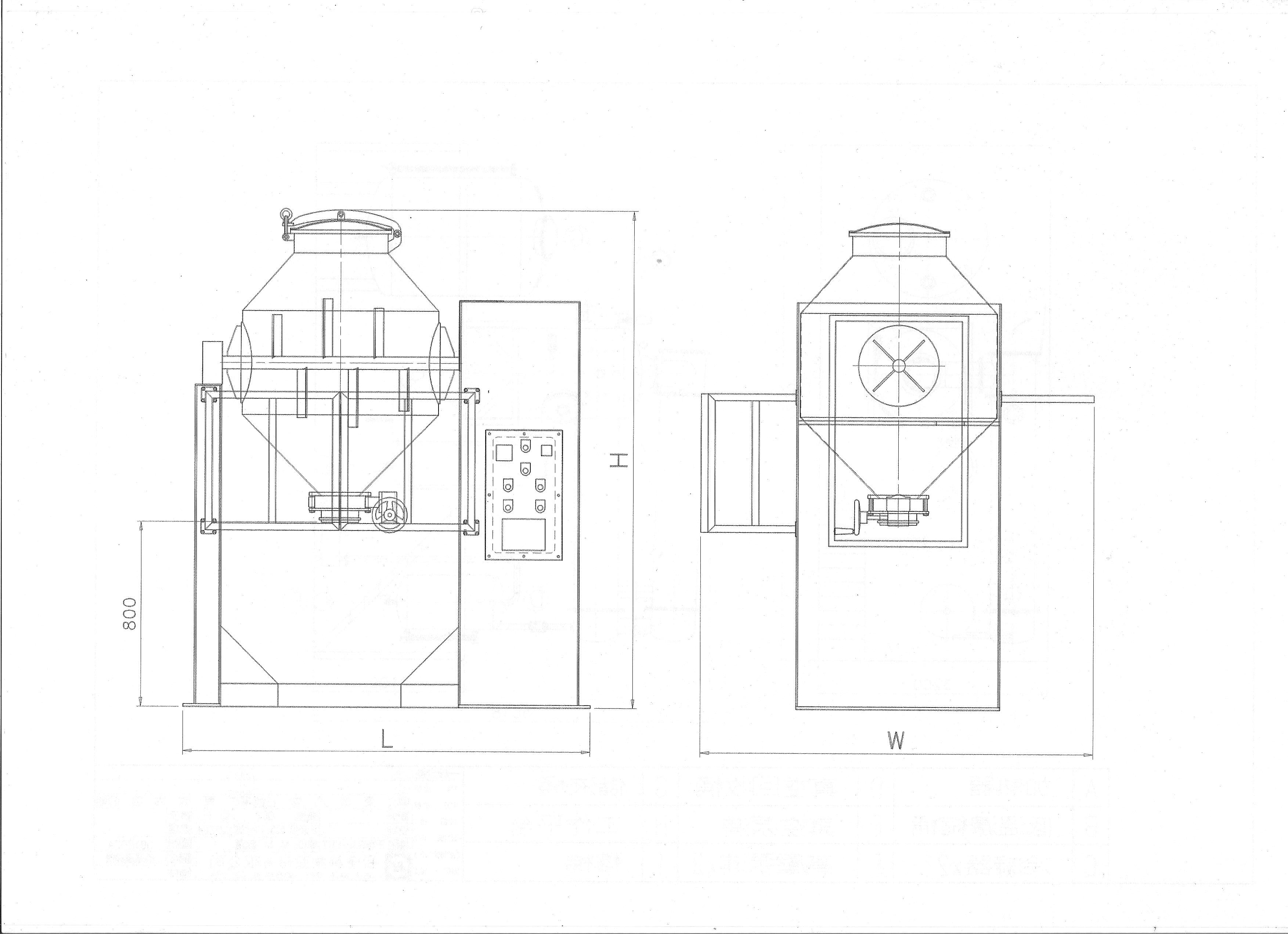

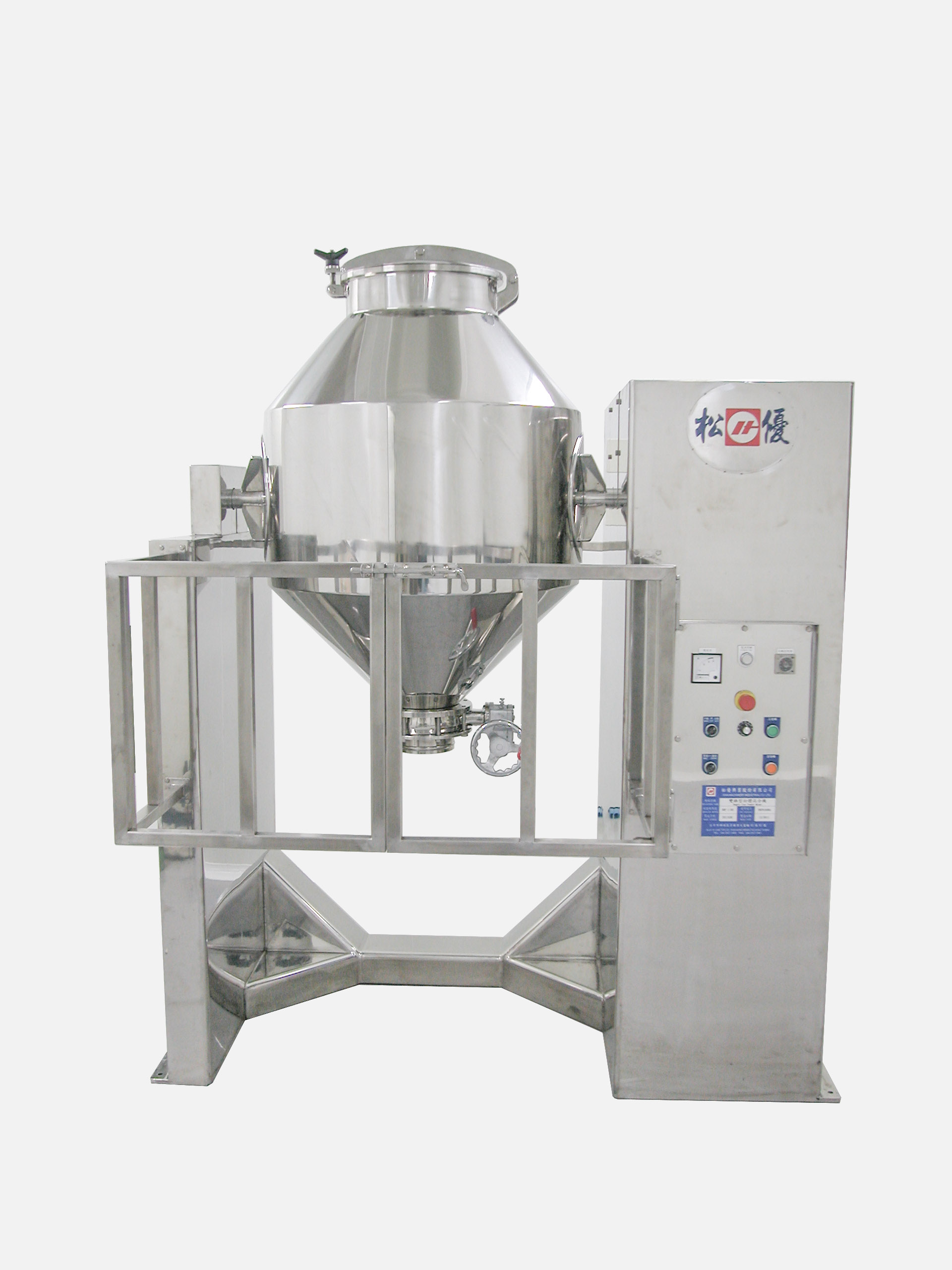

The mixer features a unique design with a conical shape at both ends and a wider central section. Inside the mixing bucket, there are fixed baffles and guide plates. As the machine rotates, the materials move from top to bottom, creating a splitting and merging action due to the baffles, which ensures thorough mixing.

Features

1. Suitable for mixing materials with different densities or adding other substances.
2. The mixing bucket can be tilted at any angle for easy discharge and cleaning.
3. Automated Mixing Time Control
4. Easy Operation and Maintenance.
5. Equipped with safety railings and devices to protect operators.
6. Seal-Free Design: The mixing shaft is fixed to the bucket, eliminating the need for shaft seals and preventing contamination.
7. Capacity Range: Available in capacities from 100 to 3000 liters.
